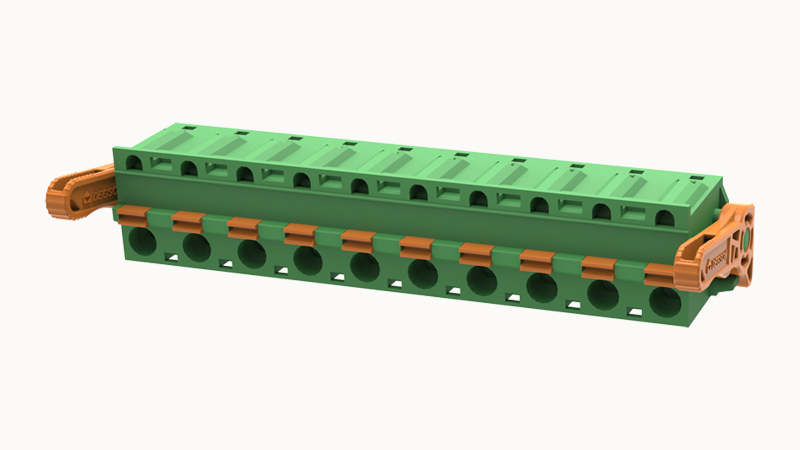

DEGSON 2EDGKDGB-7.62-10P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

26~12AWG

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated voltage(III/2)

400V

Rated surge voltage(III/2)

4KV

Number of potentials

10

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Test Specification

IEC61984/ UL1059

Relative humidity (storage/transport)

30% ~ 70%

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Screwdriver

/

Operating tool

/

Coding strip

2EDG-PWI

Bridge

/

Marking strip

/

Packing unit

570

Products weight (without packaging)

2.48

Number of rows

1

螺距

7.62mm

Connection method

Push-in spring connection

Flammability rating

UL94V-0
