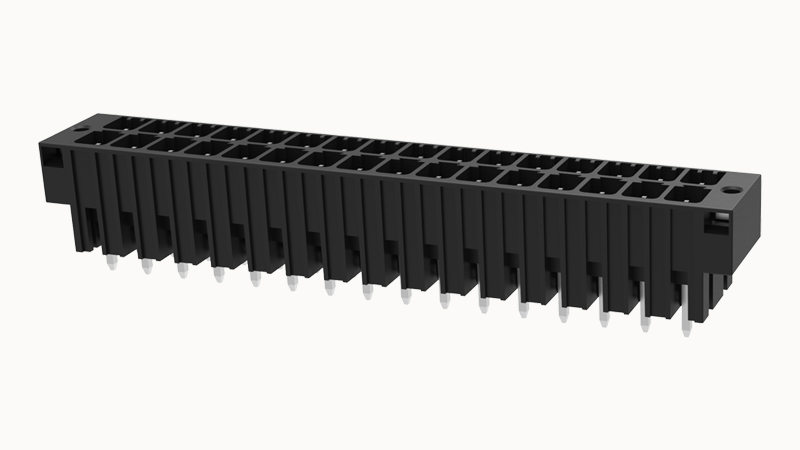

DEGSON 2EDGVHCM-5.08-32P

Rated voltage(III/3)

250V

Rated voltage(III/2)

400V

Rated voltage(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

32

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Glow Wire Flammability Index GWFI

850

Shell color

Black

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

200

Products weight (without packaging)

15.51

Type of packaging

bag packaging

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Number of rows

2

螺距

5.08mm

Rated current

8A

screw thread

M2

Rated voltage

400V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
