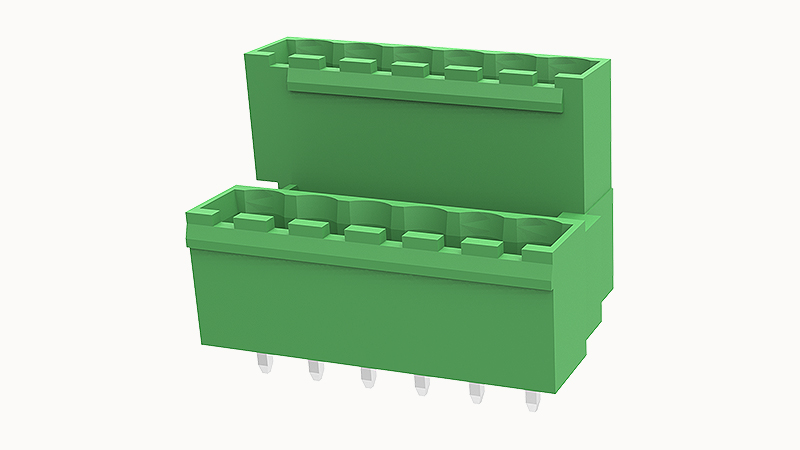

DEGSON 2EDGVTC-5.08-12P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Connection direction

90°

Products weight (without packaging)

7.78

Packing unit

225

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

12

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Number of rows

2

螺距

5.08mm

Rated current

10A

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
