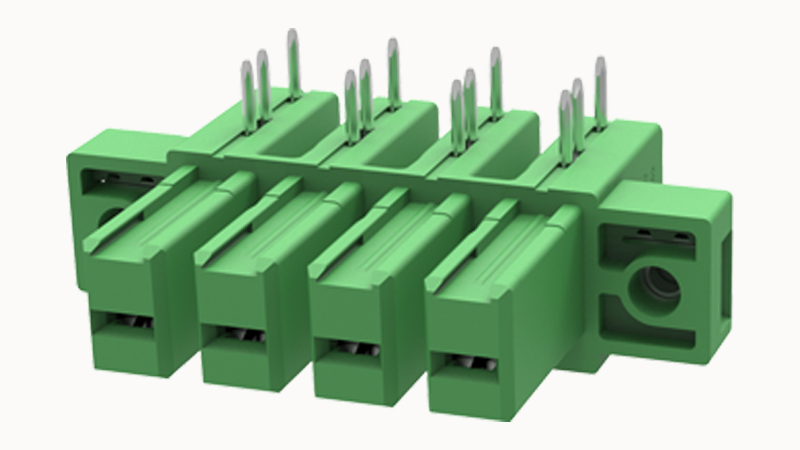

DEGSON 5EDGAM-7.62-200Z-04P

Type of packaging

box-packed

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

41A

Rated current (D)

5A

Rated current (C)

41A

Rated voltage(III/3)

630V

Rated voltage(III/2)

800V

Rated voltage(II/2)

800V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Three rows in a straight line

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Products weight (without packaging)

11.06

Packing unit

210

Marking strip

/

Bridge

/

Coding strip

5EDG-PWI

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Shell color

green

Ball pressure test temperature

125℃

Glow wire ignition temperature GWIT

750

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

600V

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

800V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
