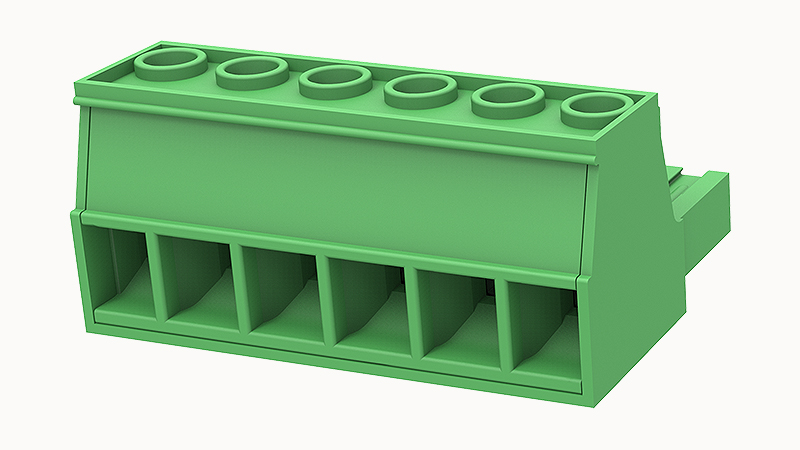

DEGSON 5EDGK-10.16-06P

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~10mm²

AWG

20~6AWG

Torque

1.2N.m

Strip length

7mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

300V

Rated current (B)

52A

Rated current (D)

10A

Rated current (C)

52A

Rated voltage(III/3)

600V

Rated surge voltage(III/3)

6KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

Silver plated

Contact zone metal surface

Silver plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

5EDG-PWI

Bridge

/

Marking strip

/

Packing unit

70

Products weight (without packaging)

49.608

Number of rows

1

螺距

10.16mm

Rated current

57A

screw thread

M4

Connection method

Screw connection

Rated voltage

600V

Flammability rating

UL94V-0
