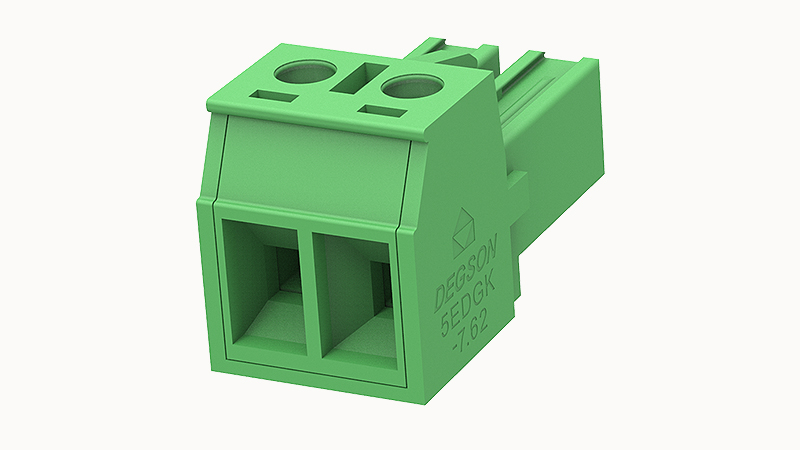

DEGSON 5EDGK-7.62-02P

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

30~10AWG

Rated voltage (B)

300V

Rated current (B)

30A

Rated current (D)

10A

Rated current (C)

30A

Rated current(III/2)

400V

Rated surge voltage(III/2)

4KV

Connection direction

0°

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Ambient temperature (operation)

-40℃~105℃

Torque

0.5N.m

Strip length

7mm

Rated voltage (C)

300V

Rated voltage (D)

300V

Screwdriver

Slotted screwdriver

Test Specification

IEC61984/ UL1059

Number of rows

1

螺距

7.62mm

Rated current

32A

screw thread

M3

Rated voltage

400V

Flammability rating

UL94V-0
