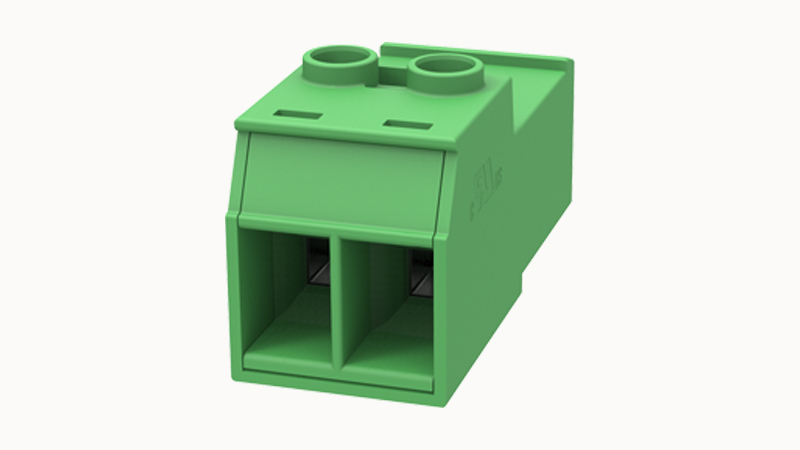

DEGSON 5EDGKHR-7.62-02P

Type of packaging

box-packed

Conductor cross section solid

0.2~6mm²

Conductor cross section flexible

0.2~6.0mm²

feeler gauge a x b／diameter

3.6mm x3.1mm/3.4mm

AWG

24~8AWG

Torque

0.8N.m

Strip length

10mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

41A

Rated current (C)

41A

Rated voltage(III/3)

1000V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Glow wire ignition temperature GWIT

750

Ball pressure test temperature

125℃

Shell color

green

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

5EDG-PWI

Bridge

/

Marking strip

/

Packing unit

425

Products weight (without packaging)

7.65

Number of rows

1

螺距

7.62mm

Rated current

41A

screw thread

M3

Connection method

Screw connection

Rated voltage

1000V

Flammability rating

UL94V-0
