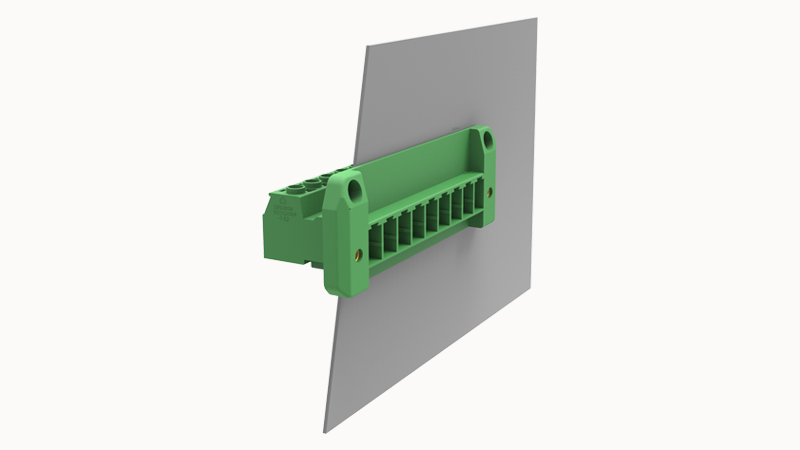

DEGSON 5EDGKRP-7.62-09P

Sea level impulse withstanding voltage

7.3kV

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

35A

Rated current (D)

5A

Type of packaging

box-packed

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

feeler gauge a x b／diameter

3.6mm x3.1mm/3.0mm

AWG

30~10AWG

Torque

0.5N.m

Strip length

7mm

Rated voltage(III/3)

400V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Type of installation

panel

Screwdriver

Slotted screwdriver

Number of potentials

9

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Shell color

green

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

5EDG-PWI

Bridge

/

Marking strip

/

Packing unit

40

Products weight (without packaging)

35.59

Number of rows

1

螺距

7.62mm

Rated current

20A

screw thread

M3

Connection method

Screw connection

Flammability rating

UL94V-0
