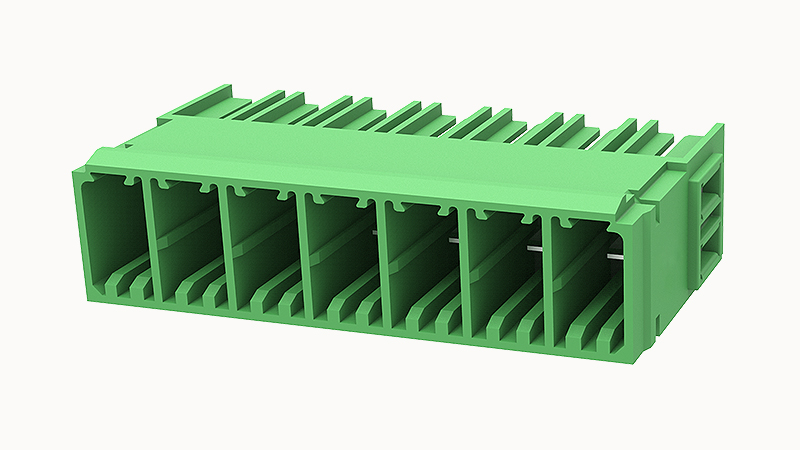

DEGSON 5EDGRHC-7.62-07P

Packing unit

120

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

7

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

630V

Rated voltage(III/3)

630V

Rated current (C)

41A

Rated current (D)

15A

Rated current (B)

41A

Rated voltage (D)

150V

Rated voltage (C)

150V

Rated voltage (B)

300V

Products weight (without packaging)

14.17

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
