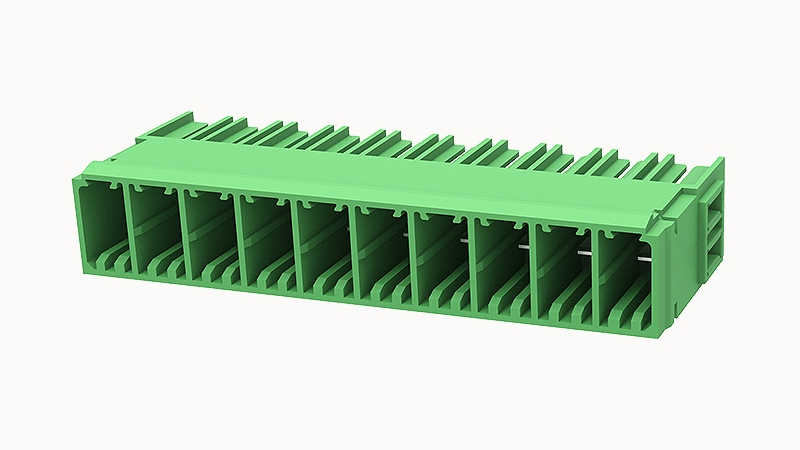

DEGSON 5EDGRHC-7.62-10P

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

150V

Rated current (B)

41A

Rated current (D)

15A

Rated current (C)

41A

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

90

Products weight (without packaging)

20

Rated voltage(III/3)

630V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Three rows in a straight line

Number of potentials

10

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
