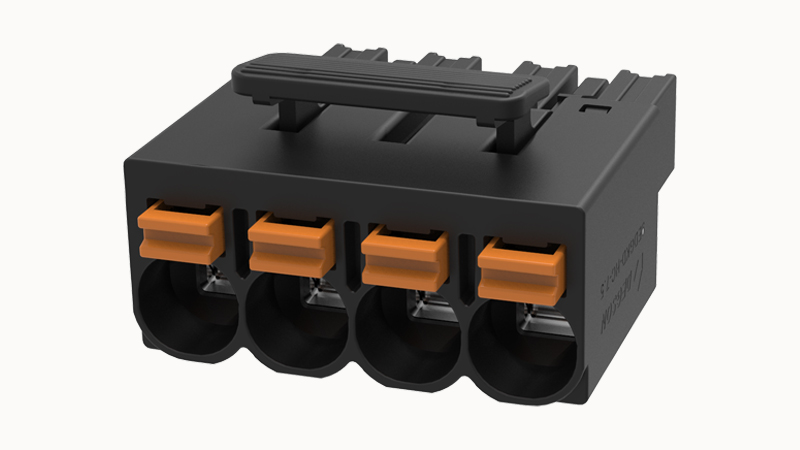

DEGSON 9EDGKD-HC-7.5-04P

Type of packaging

box-packed

Conductor cross section solid

1.0~6mm²

Conductor cross section flexible

1.0~6.0mm²

AWG

18~10AWG

Strip length

12mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

25A

Rated current (C)

25A

Rated voltage(III/3)

630V

Rated voltage(III/2)

800V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

2EDG-PWI

Bridge

/

Marking strip

/

Packing unit

240

Products weight (without packaging)

13.2

Number of rows

1

螺距

7.5mm

Rated current

25A

Connection method

Push-in spring connection

Rated voltage

800V

Flammability rating

UL94V-0
