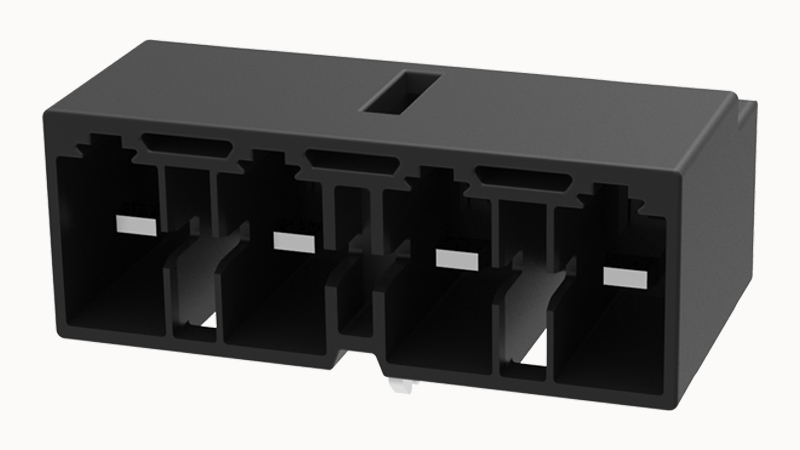

DEGSON 9EDGRB-HC-7.5-04P

Type of packaging

box-packed

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated current (B)

25A

Rated current (C)

25A

Rated voltage(III/3)

630V

Rated surge voltage(III/3)

6KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

4

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

2EDG-PWP-01A(H)

Bridge

/

Marking strip

/

Packing unit

540

Products weight (without packaging)

4.7

螺距

7.5mm

Rated current

25A

Connection method

Push-in spring connection

Rated voltage

630V

Flammability rating

UL94V-0
