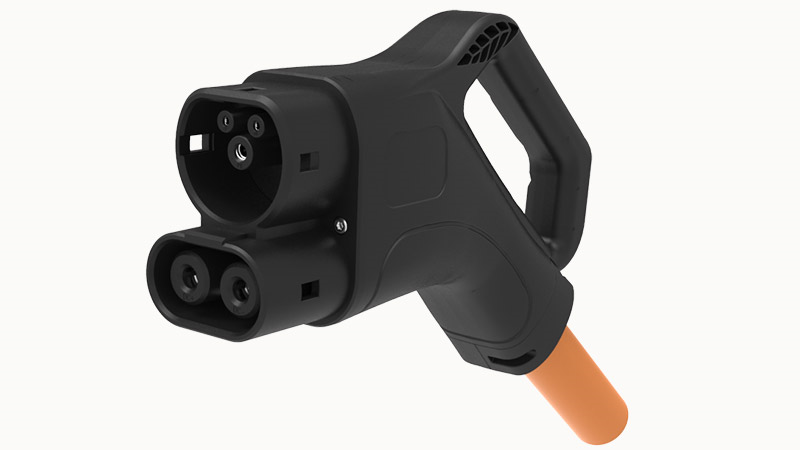

DEGSON MEDC-T-200A-V-5.0M

Shell material

Plastic

Strip length

300±30mm

Vehicle connector height

102mm(Vehicle charging connector)

Vehicle connector width

72mm(Vehicle charging connector)

Vehicle connector depth

271mm(Vehicle charging connector)

Ambient temperature (operation)

－ 30 °C ~ 50 °C

Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C

IP class

IP54(coupling )

Handle color

black

Resistance coding

1500Ω

Maximum charge power

200KW

Power pin quantity

3

Quantity of signal contacts

2

Signal contact rated current

2

Signal contact rated voltage

30

Signal transmission type

Pulse width adjustment

Insert / pull out cycle

10000

Pullout force

< 100N

Shell color

black

Actuation component color

Silver

Cover color

black

Customization basis

Provided according to customer requirements

Handle material area

Plastic

Protective cover material

Soft plastic

Contact surface material

Ag

REACH

conform

China RoHS

conform

Cable composition

2x70 mm²+1x35 mm²+2×0.75mm²+4×0.5mm²

Wiring level

6 class

Cable outer diameter

34.7±0.8mm

Cable resistance

≤ 0.000272Ω/m (Based on the power core, at an ambient temperature of 20°C)

Wiring standard

EN50620

Outer sheath,color

black

Outer sheath, material

TPU

working altitude

≤2000m

Cable length

5000±100mm

Rated current

200A

Wire type

Straight line

Rated voltage

1000V

Insertion force

< 100N

证明书

CE

Minimum bend radius

208mm

相位

3

Flammability rating

V0
