Nuvoton FCAB21910L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.51W

Rg

24.5Ω

Vth [Min]

1.3V

Vth [Max]

2.35V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

80ns

td(off) [Typ]

175ns

tf [Typ]

160ns

tr [Typ]

290ns

ISSS [Max]

1µA

VSS

12V

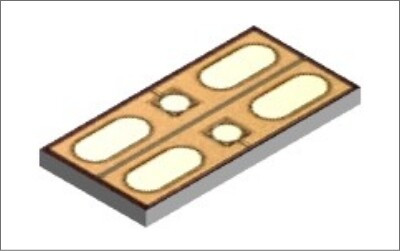

Package

TCSP1326008-N2

Crss [Typ]

390pF

Ciss [Typ]

3100pF

Coss [Typ]

485pF

IS

8.5A

ISp

85A

RSS(on)@VGS=4.5V [Typ]

3.5mΩ

RSS(on)@VGS=3.8V [Typ]

4.4mΩ

Qg [Typ]

20nC

Qgs [Typ]

9.5nC

Qgd [Typ]

6nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

245°C/W

类型

Nchx2
