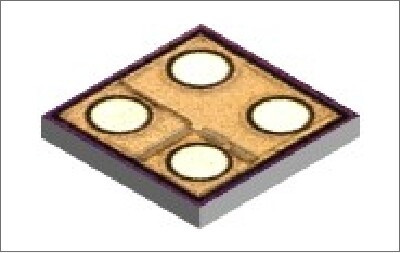

Nuvoton FK4B01110L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

3.4A

IDp

27A

PD

0.76W

RDS(on)@VGS=1.5V [Typ]

91mΩ

RDS(on)@VGS=1.8V [Typ]

70mΩ

RDS(on)@VGS=2.5V [Typ]

57mΩ

RDS(on)@VGS=4.5V [Typ]

47mΩ

Package

ALGA004-W-0606-RA01

IDSS [Max]

10µA

Vth [Min]

0.3V

Vth [Max]

1V

Qgd [Typ]

0.55nC

Qgs [Typ]

0.55nC

Qg [Typ]

2.55nC

tf [Typ]

38ns

td(off) [Typ]

34ns

tr [Typ]

3ns

td(on) [Typ]

3.6ns

Crss [Typ]

42pF

Coss [Typ]

63pF

Ciss [Typ]

274pF

IGSS@VGS=±8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
