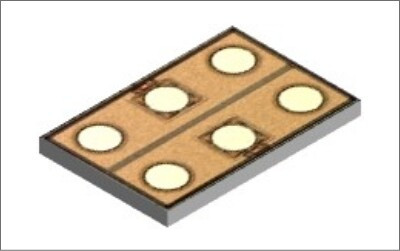

Nuvoton KFC6B21B70L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.5W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

2.1µs

td(off) [Typ]

8.8µs

tf [Typ]

4.8µs

tr [Typ]

3.1µs

ISSS [Max]

1µA

VSS

12V

Package

MLGA006-W-1219-RB

Crss [Typ]

240pF

Ciss [Typ]

1810pF

Coss [Typ]

300pF

IS

9A

ISp

90A

RSS(on)@VGS=4.5V [Typ]

4.6mΩ

RSS(on)@VGS=3.8V [Typ]

4.6mΩ

RSS(on)@VGS=3.1V [Typ]

5.4mΩ

RSS(on)@VGS=2.5V [Typ]

7.4mΩ

Qg [Typ]

15nC

Qgs [Typ]

4.1nC

Qgd [Typ]

3.3nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

250°C/W

类型

Nchx2
