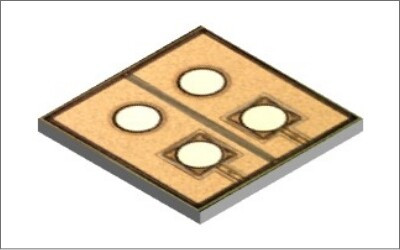

Nuvoton KFC4B21210L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.37W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.33µs

td(off) [Typ]

1.57µs

tf [Typ]

0.86µs

tr [Typ]

0.56µs

ISSS [Max]

1µA

VSS

12V

Package

ULGA004-W-1313-RA

Crss [Typ]

140pF

Ciss [Typ]

1140pF

Coss [Typ]

180pF

IS

4.7A

ISp

47A

RSS(on)@VGS=4.5V [Typ]

13mΩ

RSS(on)@VGS=3.8V [Typ]

13mΩ

RSS(on)@VGS=3.1V [Typ]

14mΩ

RSS(on)@VGS=2.5V [Typ]

17mΩ

Qg [Typ]

9.4nC

Qgs [Typ]

2.6nC

Qgd [Typ]

1.9nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

338°C/W

类型

Nchx2
