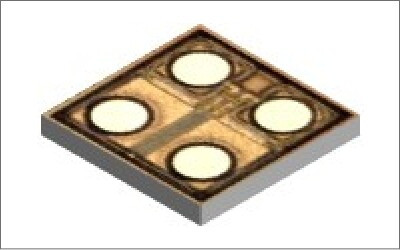

Nuvoton KFC4A21300L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.32W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.1µs

td(off) [Typ]

0.27µs

tf [Typ]

0.22µs

tr [Typ]

0.2µs

ISSS [Max]

1µA

VSS

12V

Package

ABGA004-W-0606ARA

Crss [Typ]

18pF

Ciss [Typ]

115pF

Coss [Typ]

25pF

IS

1.5A

ISp

15A

RSS(on)@VGS=4.5V [Typ]

80mΩ

RSS(on)@VGS=3.8V [Typ]

80mΩ

RSS(on)@VGS=3.1V [Typ]

90mΩ

RSS(on)@VGS=2.5V [Typ]

115mΩ

Qg [Typ]

1.7nC

Qgs [Typ]

0.5nC

Qgd [Typ]

0.45nC

VF(s-s) [Typ]

0.6V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

390°C/W

类型

Nchx2
