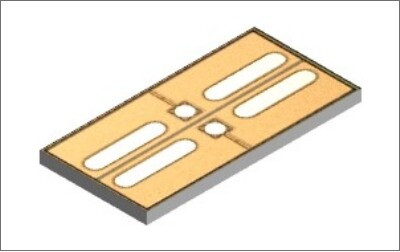

Nuvoton KFCAB21770L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.54W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±8V [Max]

±0.12µA

td(on) [Typ]

1.8µs

td(off) [Typ]

5.9µs

tf [Typ]

4.2µs

tr [Typ]

3.3µs

ISSS [Max]

1µA

VSS

12V

Package

TCSP1835011-N3

Crss [Typ]

640pF

Ciss [Typ]

4930pF

Coss [Typ]

740pF

IS

14.5A

ISp

145A

RSS(on)@VGS=4.5V [Typ]

2mΩ

RSS(on)@VGS=3.8V [Typ]

2mΩ

RSS(on)@VGS=3.1V [Typ]

2.2mΩ

RSS(on)@VGS=2.5V [Typ]

2.7mΩ

Qg [Typ]

42nC

Qgs [Typ]

14nC

Qgd [Typ]

7nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

232°C/W

类型

Nchx2
