Nuvoton KFJ4B01120L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

-4.2A

IDp

-33A

PD

0.94W

RDS(on)@VGS=1.5V [Typ]

57mΩ

RDS(on)@VGS=1.8V [Typ]

48mΩ

RDS(on)@VGS=2.5V [Typ]

40mΩ

RDS(on)@VGS=4.5V [Typ]

34mΩ

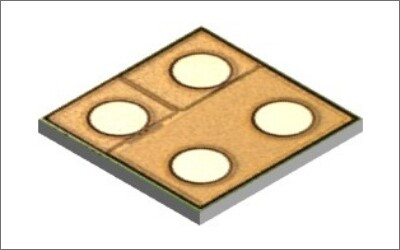

Package

ULGA004-W-1010-RA01

IDSS [Max]

-1µA

Vth [Min]

-0.3V

Vth [Max]

-1V

Qgd [Typ]

2nC

Qgs [Typ]

1nC

Qg [Typ]

11nC

tf [Typ]

46ns

td(off) [Typ]

63ns

tr [Typ]

4ns

td(on) [Typ]

6ns

Crss [Typ]

187pF

Coss [Typ]

201pF

Ciss [Typ]

814pF

IGSS@VGS=±8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
