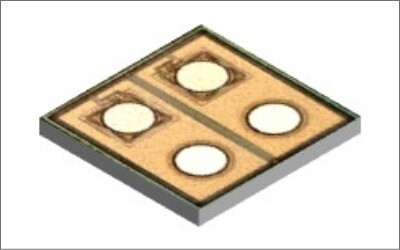

Nuvoton KFC4B21080L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.35W

Vth [Min]

0.4V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.6µs

td(off) [Typ]

2.6µs

tf [Typ]

3.1µs

tr [Typ]

1.7µs

ISSS [Max]

1µA

VSS

12V

Package

ULGA004-W-1212

Crss [Typ]

203pF

Ciss [Typ]

850pF

Coss [Typ]

205pF

IS

2.9A

ISp

29A

RSS(on)@VGS=4.5V [Typ]

30mΩ

RSS(on)@VGS=3.8V [Typ]

30mΩ

RSS(on)@VGS=3.1V [Typ]

39mΩ

RSS(on)@VGS=2.5V [Typ]

60mΩ

Qg [Typ]

7.1nC

Qgs [Typ]

1.5nC

Qgd [Typ]

2.7nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

352°C/W

类型

Nchx2
