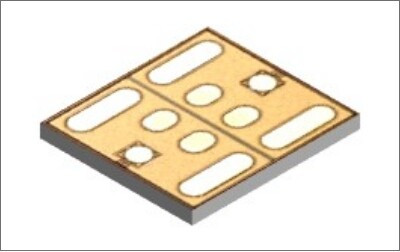

Nuvoton KFCAB21860L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.58W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

1.6µs

td(off) [Typ]

7.5µs

tf [Typ]

4µs

tr [Typ]

2.6µs

ISSS [Max]

1µA

VSS

12V

Package

TCSP2325010-N1

Crss [Typ]

770pF

Ciss [Typ]

5390pF

Coss [Typ]

890pF

IS

17A

ISp

170A

RSS(on)@VGS=4.5V [Typ]

1.5mΩ

RSS(on)@VGS=3.8V [Typ]

1.5mΩ

RSS(on)@VGS=3.1V [Typ]

1.7mΩ

RSS(on)@VGS=2.5V [Typ]

2.25mΩ

Qg [Typ]

45nC

Qgs [Typ]

12nC

Qgd [Typ]

9nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

215°C/W

类型

Nchx2
