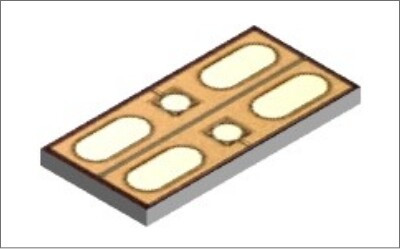

Nuvoton FCAB22710L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.51W

Rg

24.5Ω

Vth [Min]

1.3V

Vth [Max]

2.35V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

62ns

td(off) [Typ]

155ns

tf [Typ]

140ns

tr [Typ]

240ns

ISSS [Max]

1µA

VSS

20V

Package

TCSP1326008-N2

Crss [Typ]

205pF

Ciss [Typ]

2320pF

Coss [Typ]

265pF

IS

6.1A

ISp

61A

RSS(on)@VGS=4.5V [Typ]

7.5mΩ

RSS(on)@VGS=3.8V [Typ]

7.5mΩ

RSS(on)@VGS=3.1V [Typ]

16.5mΩ

Qg [Typ]

17.5nC

Qgs [Typ]

6.5nC

Qgd [Typ]

6.5nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

245°C/W

类型

Nchx2
