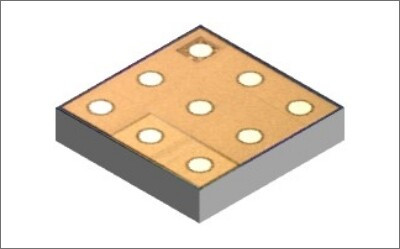

Nuvoton KFJ9B0466ZL(T)

VGS

-20/+10V

VDS

-40V

ID

-7.0A

IDp

-56.0A

PD

2W

RDS(on)@VGS=4.5V [Typ]

30mΩ

RDS(on)@VGS=10V [Typ]

27mΩ

Package

MLGA009-W-3030-FA

IDSS [Max]

-1µA

Vth [Min]

-1V

Vth [Max]

-3V

Qgd [Typ]

26nC

Qgs [Typ]

20nC

Qg [Typ]

140nC

tf [Typ]

200ns

td(off) [Typ]

580ns

tr [Typ]

70ns

td(on) [Typ]

40ns

Crss [Typ]

450pF

Coss [Typ]

500pF

Ciss [Typ]

7500pF

IGSS@VGS=±8V [Max]

µA

IGSS@VGS=-16V/+8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
