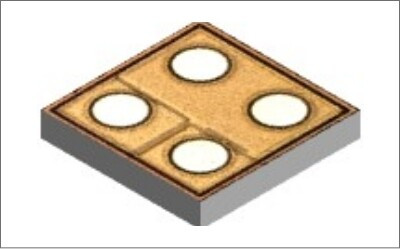

Nuvoton KFJ4B01100L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

-3.3A

IDp

-26A

PD

0.82W

RDS(on)@VGS=1.5V [Typ]

97mΩ

RDS(on)@VGS=1.8V [Typ]

82mΩ

RDS(on)@VGS=2.5V [Typ]

68mΩ

RDS(on)@VGS=4.5V [Typ]

57mΩ

Package

XLGA004-W-0808-RA01

IDSS [Max]

-10µA

Vth [Min]

-0.3V

Vth [Max]

-1V

Qgd [Typ]

0.95nC

Qgs [Typ]

0.75nC

Qg [Typ]

7nC

tf [Typ]

10ns

td(off) [Typ]

59ns

tr [Typ]

11ns

td(on) [Typ]

8ns

Crss [Typ]

75pF

Coss [Typ]

85pF

Ciss [Typ]

459pF

IGSS@VGS=±8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
