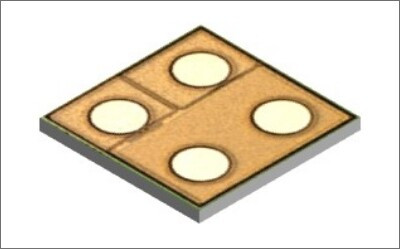

Nuvoton FK4B01120L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

6.5A

IDp

52A

PD

0.94W

RDS(on)@VGS=1.5V [Typ]

14mΩ

RDS(on)@VGS=1.8V [Typ]

21mΩ

RDS(on)@VGS=2.5V [Typ]

17mΩ

RDS(on)@VGS=4.5V [Typ]

14mΩ

Package

ULGA004-W-1010-RA01

IDSS [Max]

10µA

Vth [Min]

0.3V

Vth [Max]

1V

Qgd [Typ]

1.5nC

Qgs [Typ]

1.4nC

Qg [Typ]

7nC

tf [Typ]

147ns

td(off) [Typ]

235ns

tr [Typ]

3.7ns

td(on) [Typ]

4.3ns

Crss [Typ]

128pF

Coss [Typ]

184pF

Ciss [Typ]

490pF

IGSS@VGS=±8V [Max]

±8µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
