Nuvoton KFJ4B01110L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

-2.2A

IDp

-17A

PD

1W

RDS(on)@VGS=1.5V [Typ]

199mΩ

RDS(on)@VGS=1.8V [Typ]

169mΩ

RDS(on)@VGS=2.5V [Typ]

141mΩ

RDS(on)@VGS=4.5V [Typ]

118mΩ

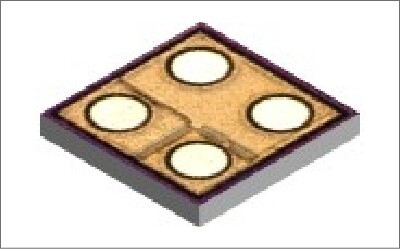

Package

ALGA004-W-0606-RA01

IDSS [Max]

-10µA

Vth [Min]

-0.3V

Vth [Max]

-1V

Qgd [Typ]

1nC

Qgs [Typ]

1nC

Qg [Typ]

3nC

tf [Typ]

5ns

td(off) [Typ]

30ns

tr [Typ]

2ns

td(on) [Typ]

4ns

Crss [Typ]

51pF

Coss [Typ]

62pF

Ciss [Typ]

226pF

IGSS@VGS=±8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Pch
