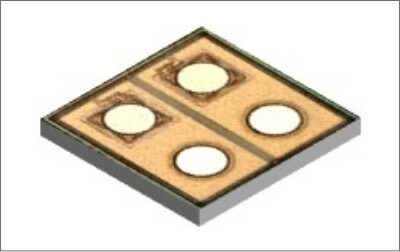

Nuvoton KFC4B22690L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.42W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±8V [Max]

±1µA

td(on) [Typ]

0.11µs

td(off) [Typ]

0.66µs

tf [Typ]

0.46µs

tr [Typ]

0.28µs

ISSS [Max]

1µA

VSS

20V

Package

MLGA004-W-1111-RA

Crss [Typ]

71pF

Ciss [Typ]

426pF

Coss [Typ]

84pF

IS

3.4A

ISp

34A

RSS(on)@VGS=4.5V [Typ]

30.5mΩ

RSS(on)@VGS=3.8V [Typ]

30.5mΩ

RSS(on)@VGS=3.1V [Typ]

33mΩ

RSS(on)@VGS=2.5V [Typ]

36mΩ

Qg [Typ]

4.5nC

Qgs [Typ]

1.1nC

Qgd [Typ]

1.2nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

292°C/W

类型

Nchx2
