Nuvoton KFC4B21280L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.36W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±8V [Max]

±1µA

td(on) [Typ]

0.19µs

td(off) [Typ]

0.93µs

tf [Typ]

0.56µs

tr [Typ]

0.38µs

ISSS [Max]

1µA

VSS

12V

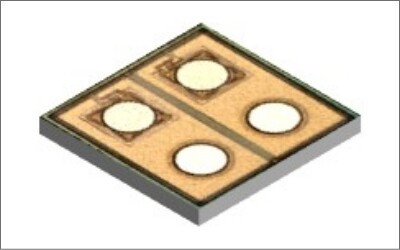

Package

ULGA004-W-1212

Crss [Typ]

90pF

Ciss [Typ]

670pF

Coss [Typ]

129pF

IS

4A

ISp

40A

RSS(on)@VGS=4.5V [Typ]

17mΩ

RSS(on)@VGS=3.8V [Typ]

17mΩ

RSS(on)@VGS=3.1V [Typ]

19mΩ

RSS(on)@VGS=2.5V [Typ]

23mΩ

Qg [Typ]

6.2nC

Qgs [Typ]

1.6nC

Qgd [Typ]

1.1nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

347°C/W

类型

Nchx2
