Nuvoton FK4B01100L(T)

Product Series

Small Size MOSFET for General Switching

VGS

±8V

VDS

12V

ID

5.2A

IDp

41A

PD

0.82W

RDS(on)@VGS=1.5V [Typ]

43mΩ

RDS(on)@VGS=1.8V [Typ]

33mΩ

RDS(on)@VGS=2.5V [Typ]

27mΩ

RDS(on)@VGS=4.5V [Typ]

22mΩ

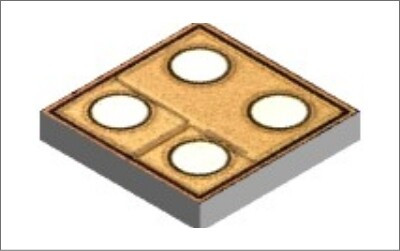

Package

XLGA004-W-0808-RA01

IDSS [Max]

10µA

Vth [Min]

0.3

Vth [Max]

1V

Qgd [Typ]

0.95nC

Qgs [Typ]

0.75nC

Qg [Typ]

5.8nC

tf [Typ]

76ns

td(off) [Typ]

165ns

tr [Typ]

14ns

td(on) [Typ]

7ns

Crss [Typ]

70pF

Coss [Typ]

100pF

Ciss [Typ]

275pF

IGSS@VGS=±8V [Max]

±10µA

Tstg

-55~+150°C

Tch

150°C

类型

Nch
