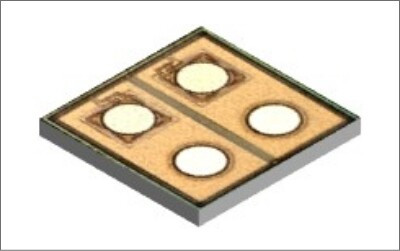

Nuvoton KFC4B22670L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.42W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±8V [Max]

±1µA

td(on) [Typ]

0.12µs

td(off) [Typ]

0.54µs

tf [Typ]

0.39µs

tr [Typ]

0.26µs

ISSS [Max]

1µA

VSS

20V

Package

MLGA004-W-1111-RA

Crss [Typ]

68pF

Ciss [Typ]

440pF

Coss [Typ]

82pF

IS

2.9A

ISp

29A

RSS(on)@VGS=4.5V [Typ]

37.5mΩ

RSS(on)@VGS=3.8V [Typ]

37.5mΩ

RSS(on)@VGS=3.1V [Typ]

42mΩ

RSS(on)@VGS=2.5V [Typ]

64mΩ

Qg [Typ]

4.5nC

Qgs [Typ]

1.1nC

Qgd [Typ]

1.2nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

292°C/W

类型

Nchx2
