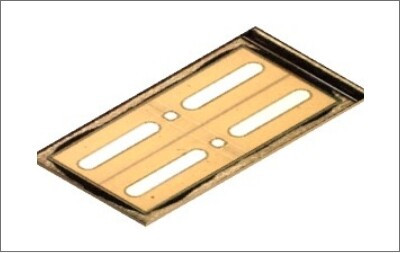

Nuvoton KFC7P23440L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±20V

PD

1W

Vth [Min]

1V

Vth [Max]

3V

td(on) [Typ]

75µs

td(off) [Typ]

220µs

tf [Typ]

170µs

tr [Typ]

430µs

ISSS [Max]

1µA

VSS

30V

Package

PMCP-6030-Z2

Crss [Typ]

440pF

Ciss [Typ]

4800pF

Coss [Typ]

690pF

IS

19A

ISp

90A

RSS(on)@VGS=10V [Typ]

2mΩ

RSS(on)@VGS=8V [Typ]

2.2mΩ

RSS(on)@VGS=4.5V [Typ]

3.4mΩ

Qg [Typ]

85nC

Qgs [Typ]

15nC

Qgd [Typ]

10nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

125°C/W

IGSS@VGS=+16V/-14V [Max]

-µA

IGSS@VGS=±20V [Max]

±10µA

类型

Nchx2
