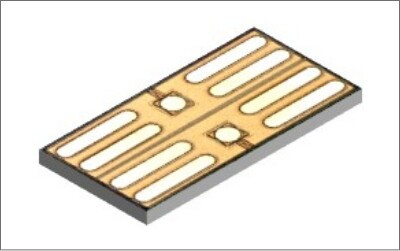

Nuvoton KFCAB21490L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.54W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.7µs

td(off) [Typ]

6.7µs

tf [Typ]

4.1µs

tr [Typ]

1.5µs

ISSS [Max]

1µA

VSS

12V

Package

TCSP1530011-N2

Crss [Typ]

410pF

Ciss [Typ]

3570pF

Coss [Typ]

460pF

IS

13.5A

ISp

135A

RSS(on)@VGS=4.5V [Typ]

2.2mΩ

RSS(on)@VGS=3.8V [Typ]

2.2mΩ

RSS(on)@VGS=3.1V [Typ]

2.4mΩ

RSS(on)@VGS=2.5V [Typ]

3.1mΩ

Qg [Typ]

25nC

Qgs [Typ]

12nC

Qgd [Typ]

6nC

VF(s-s) [Typ]

0.6V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

231°C/W

类型

Nchx2
