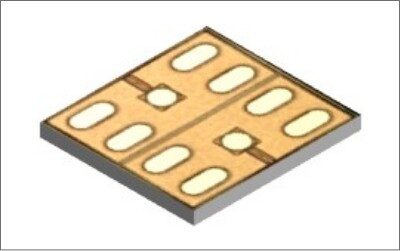

Nuvoton KFCAB21B50L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.51W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±0.5µA

IGSS@VGS=±8V [Max]

±5µA

td(on) [Typ]

1.2µs

td(off) [Typ]

5.3µs

tf [Typ]

3.3µs

tr [Typ]

2.1µs

ISSS [Max]

1µA

VSS

12V

Package

TCSP1820007-N2

Crss [Typ]

480pF

Ciss [Typ]

3900pF

Coss [Typ]

530pF

IS

15A

ISp

150A

RSS(on)@VGS=4.5V [Typ]

1.6mΩ

RSS(on)@VGS=3.8V [Typ]

1.6mΩ

RSS(on)@VGS=3.1V [Typ]

1.9mΩ

RSS(on)@VGS=2.5V [Typ]

2.45mΩ

Qg [Typ]

33nC

Qgs [Typ]

8.8nC

Qgd [Typ]

6.4nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

245°C/W

类型

Nchx2
