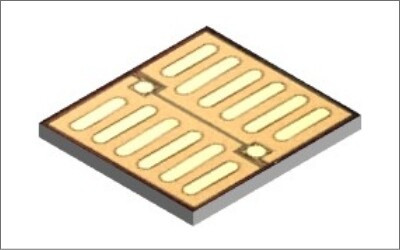

Nuvoton KFCAB21C00L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.58W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

2.7µs

td(off) [Typ]

10.1µs

tf [Typ]

6.1µs

tr [Typ]

4.4µs

ISSS [Max]

1µA

VSS

12V

Package

TCSP2730010-N2

Crss [Typ]

1340pF

Ciss [Typ]

8390pF

Coss [Typ]

1480pF

IS

20A

ISp

200A

RSS(on)@VGS=4.5V [Typ]

1.1mΩ

RSS(on)@VGS=3.8V [Typ]

1.1mΩ

RSS(on)@VGS=3.1V [Typ]

1.25mΩ

RSS(on)@VGS=2.5V [Typ]

1.6mΩ

Qg [Typ]

72nC

Qgs [Typ]

19nC

Qgd [Typ]

14nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

215°C/W

类型

Nchx2
