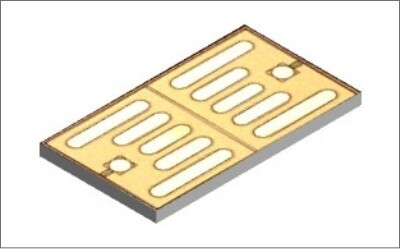

Nuvoton KFCAB22630L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.59W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

1.2µs

td(off) [Typ]

5.2µs

tf [Typ]

4.1µs

tr [Typ]

2.6µs

ISSS [Max]

1µA

VSS

23V

Package

TCSP2034010-N3

Crss [Typ]

340pF

Ciss [Typ]

3500pF

Coss [Typ]

430pF

IS

13.8A

ISp

138A

RSS(on)@VGS=4.5V [Typ]

2.4mΩ

RSS(on)@VGS=3.8V [Typ]

2.4mΩ

RSS(on)@VGS=3.1V [Typ]

2.8mΩ

RSS(on)@VGS=2.5V [Typ]

5mΩ

Qg [Typ]

29nC

Qgs [Typ]

8nC

Qgd [Typ]

9nC

VF(s-s) [Typ]

0.7V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

212°C/W

类型

Nchx2
