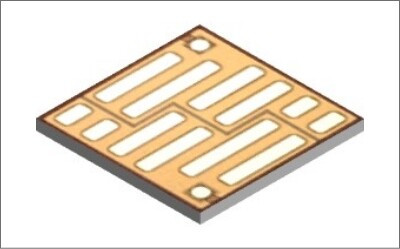

Nuvoton KFCAB22900L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

+16/-14V

PD

0.57W

Vth [Min]

1V

Vth [Max]

3V

td(on) [Typ]

1µs

td(off) [Typ]

9µs

tf [Typ]

3.7µs

tr [Typ]

1.5µs

ISSS [Max]

1µA

VSS

24V

Package

TCSP3030010-N1

Crss [Typ]

610pF

Ciss [Typ]

5780pF

Coss [Typ]

710pF

IS

17.5A

ISp

175A

RSS(on)@VGS=10V [Typ]

1.40mΩ

RSS(on)@VGS=8V [Typ]

1.55mΩ

RSS(on)@VGS=4.5V [Typ]

2.30mΩ

Qg [Typ]

110nC

Qgs [Typ]

15nC

Qgd [Typ]

27nC

VF(s-s) [Typ]

0.74V

VF(s-s) [Max]

1V

Tch

150°C

Tstg

-55~+150°C

Rth

216°C/W

IGSS@VGS=+16V/-14V [Max]

±10µA

类型

Nchx2
