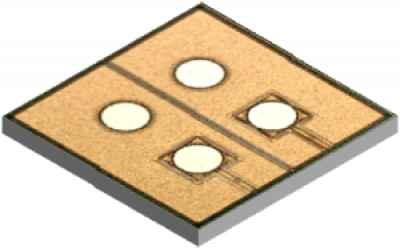

Nuvoton KFC4B22180L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±8V

PD

0.4W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.9µs

td(off) [Typ]

5µs

tf [Typ]

2.4µs

tr [Typ]

1.6µs

ISSS [Max]

1µA

VSS

20V

Package

MLGA004-W-1717-RB

Crss [Typ]

160pF

Ciss [Typ]

2440pF

Coss [Typ]

200pF

IS

5A

ISp

50A

RSS(on)@VGS=4.5V [Typ]

10mΩ

RSS(on)@VGS=3.8V [Typ]

10mΩ

RSS(on)@VGS=3.1V [Typ]

11.1mΩ

RSS(on)@VGS=2.5V [Typ]

13.4mΩ

Qg [Typ]

23nC

Qgs [Typ]

6nC

Qgd [Typ]

5nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

312°C/W

类型

Nchx2
