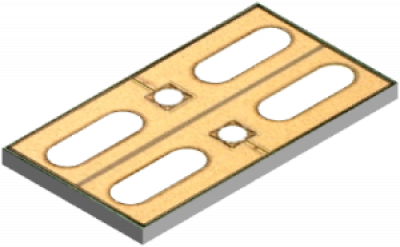

Nuvoton KFCAB22370L(T)

Product Series

12V-30V Nch Dual MOSFET

VGS

±12V

PD

0.45W

Vth [Min]

0.35V

Vth [Max]

1.4V

IGSS@VGS=±5V [Max]

±1µA

IGSS@VGS=±8V [Max]

±10µA

td(on) [Typ]

0.9µs

td(off) [Typ]

6µs

tf [Typ]

3.7µs

tr [Typ]

2µs

ISSS [Max]

1µA

VSS

20V

Package

TCSP1831011-N2

Crss [Typ]

340pF

Ciss [Typ]

3700pF

Coss [Typ]

380pF

IS

10A

ISp

100A

RSS(on)@VGS=4.5V [Typ]

3.3mΩ

RSS(on)@VGS=3.8V [Typ]

3.3mΩ

RSS(on)@VGS=3.1V [Typ]

3.8mΩ

RSS(on)@VGS=2.5V [Typ]

4.6mΩ

Qg [Typ]

33nC

Qgs [Typ]

11nC

Qgd [Typ]

9nC

VF(s-s) [Typ]

0.8V

VF(s-s) [Max]

1.2V

Tch

150°C

Tstg

-55~+150°C

Rth

278°C/W

类型

Nchx2
